Level 1 Calorimeter Trigger Software

Murrough Landon - 13 November 2002

Overview

Introduction
Overview of L1Calo software
Database
Run Control
IGUI Panels
Development environment
Software Process
Plans
Wish list!

Contributors

Past and Present

Many people have been involved in developing software for the calorimeter trigger. The main contributions so far have come from:

Bruce Barnett, Norman Gee, Steve Hillier, Murrough Landon, Gilles Mahout, Cornelius Schumacher.

Future

Other colleagues are now starting to contribute to our joint efforts.

Introduction

Level 1 Trigger

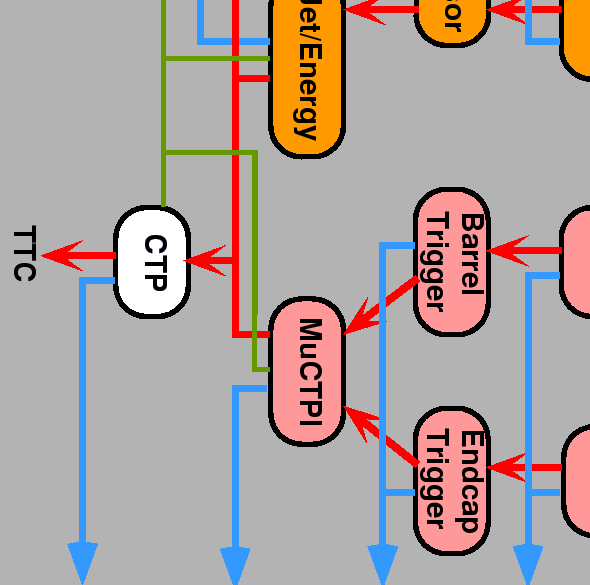

``Level 1'' comprises the calorimeter trigger, the barrel (RPC) and endcap (TGC) muons triggers, the Muon CTP interface and the CTP
The different subprojects mostly work independently
The way one ``Level 1'' subproject uses the Online software is likely to be very different from another subproject (and we probably wont know about it)
This talks only covers the Level 1 Calorimeter Trigger

Overview of the Calorimeter Trigger (1)

Hardware

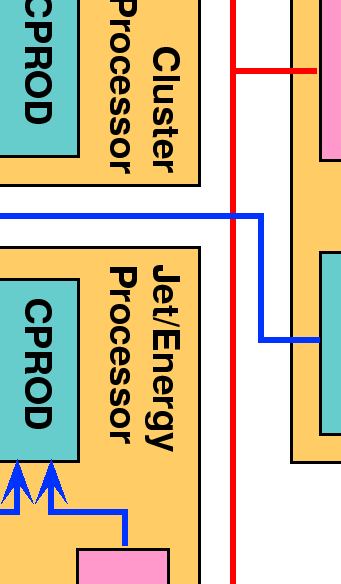

Three main subcomponents: preprocessor, cluster processor and jet/energy processor
Each processor is implemented in custom electronics in a number of 9U crates, some with custom backplanes (not quite VME)
Each crate is controlled by a CPU and will run a variant of ROD crate DAQ - but not all our crates are ROD crates

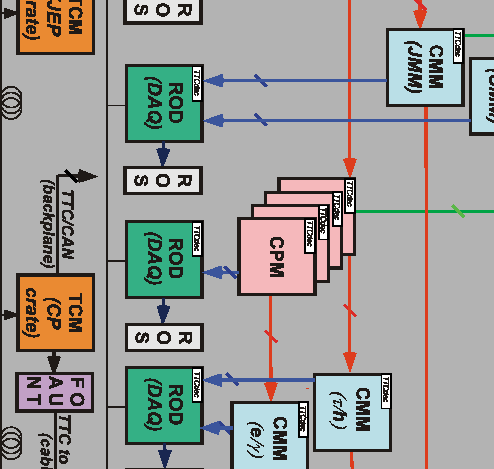

$\includegraphics[angle=0,height=12cm]{figures/HardwareDataflow}$

Overview of the Calorimeter Trigger (2)

Slice Test

Aim to test a full slice through the final system
Also test interfaces with CTP, ROS, RoIB and calorimeters
The slice test system will have about five or six crates for the calorimeter trigger alone

Software

Distributed multicrate system is an obvious candidate for Online run control environment
Aim to develop a prototype of the software required for final ATLAS
Although the focus is on testing the hardware

Overview of L1Calo Software (1)

Slice Test Procedure

Choose a hardware configuration and a test to run
Generate test vectors (if necessary)
Load the hardware with test vectors
Simulate expected output of the selected configuration
Run the system, collect data, compare and report
Use this to make rigorous check of operating modes, speeds, error handling, etc

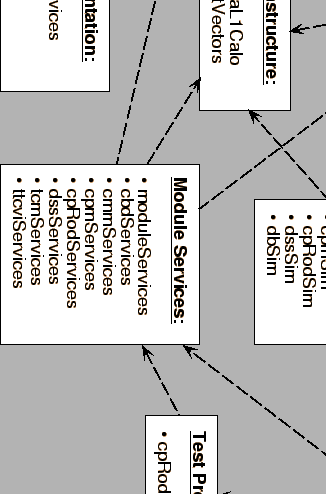

$\includegraphics[angle=0,height=12cm]{figures/SwOverview}$

Overview of L1Calo Software (2)

Major Components

Interactive diagnostics (HDMC): graphic view of details of the hardware, module registers etc
Higher level ``module services'': configure modules and their submodules using database objects
Simulation and test vector generation
Databases: extension of standard DAL, other DALs for calibration data, trigger menu and an layer integrating all of that
Run control: our run controllers and IGUI panels etc
Standalone test programs
Common utilities, CMT infrastructure
NB the majority of our effort (by my colleagues!) is not directly using the Online Software

$\begin{htmlslide}[L1Calo Components and Packages] \begin{center} \begin{figu... ...cale=0.385]{figures/PkgOverviewL.eps} \end{figure} \end{center} \end{htmlslide}$

Simulation

General framework

Generic VHDL-inspired framework with LHC 25ns clock
Simulation to arbitrary level of detail
ProcessElements may implement algorithms or contain groups of other ProcessElements
File input/output at any point
Simulate single chip (for firmware tests), single module, subsystems or the whole system

Module Services

DAQ view of modules

Layered on and extends existing generic HDMC package
Adds L1Calo specific modules and submodules via common interface
Implements actions required at each run state transition
Create complex module and submodule object structures from a template
Still uses separate HDMC database and configuration (but we would like to change this someday)

Database (1)

Integrated Database

Combines the static configuration, calibration, trigger menu and IS run parameters (for now)
Selected static configuration data can be overridden by IS run parameters (if IS server is running)
Separate DALs for calibration and trigger menu. Successive runs may use different trigger menus
Integrated database object for a module returns all current data relevant to that module

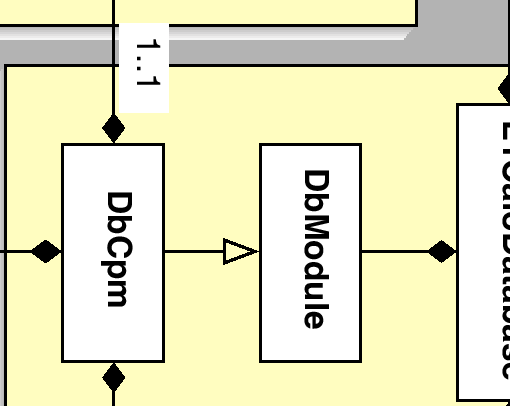

$\includegraphics[angle=0,height=10cm]{figures/DbOverview}$

Database (2)

Standard DAL Extensions

Subclasses for our partition, modules and crates
New classes to describe cabling between modules
New classes to specify lists of files which may be selected by the user
New classes to describe firmware configuration (under discussion)
Convert database string enumerations to wrapped enum classes

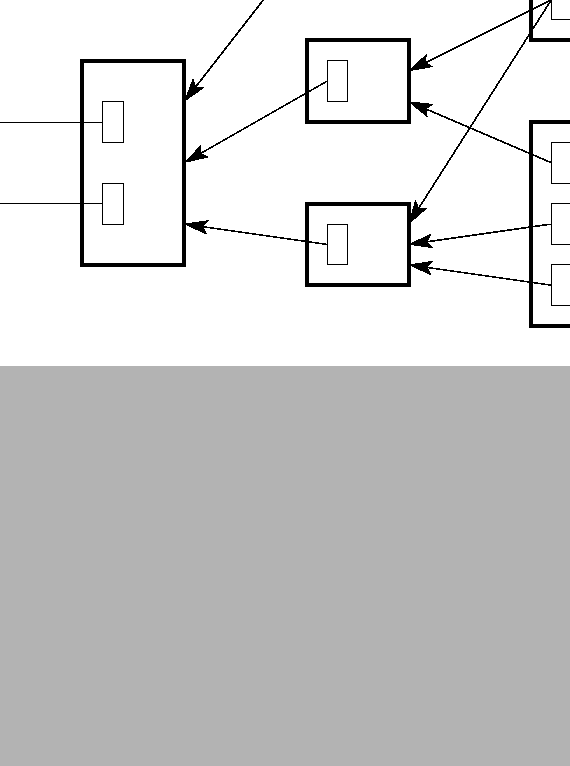

$\includegraphics[angle=0,height=8cm]{figures/DbOverview2}$

Run Control (1)

Devolution to modules

Generic controller for all our crates
Actions for each transition handled by the modules
RcModule handles interaction with Online (MRS, IS)
HwModule does all the work and can also be used in standalone test programs
Readout process started by PMG
Also envisage separate hardware status monitoring program

Run Control (2)

Simulation controller

Also use run controller for the simulation
Synchronises activity and reports any errors to MRS
Generates test vectors from descriptor file when required
Simulation configured from the integrated database (using IS run parameters if present)
Can also run simulation standalone

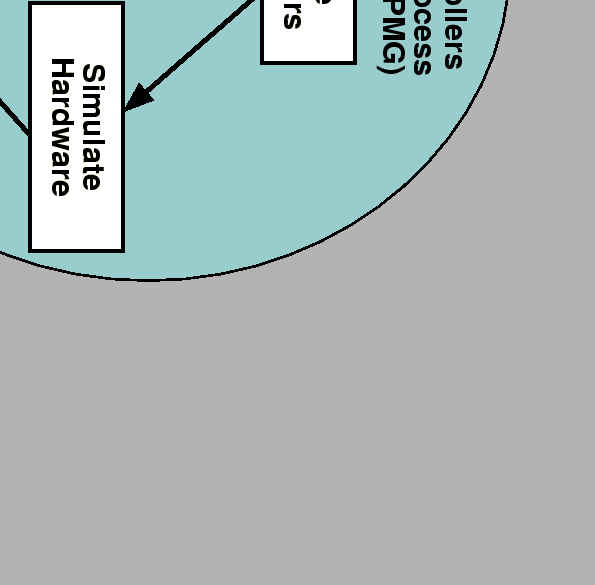

$\includegraphics[angle=0,height=12cm]{figures/RcSimulation}$

IGUI Panels

L1Calo subpanels

Single L1Calo panel with subpanels (how many top level panels are expected for final ATLAS?)
Subpanels conform to common interface (now adopted for top level panels)
Expect frequent changes in slice test environment...
...so construct run parameter and status panels dynamically from IS schema (with help from Sergei)
Simple layout - could be customised later by subclassing

$\begin{htmlslide}[L1Calo general run parameters] \begin{center} \begin{figur... ...ale=0.29]{figures/l1calo_runpars.eps} \end{figure} \end{center} \end{htmlslide}$

Development Environment

Mostly following the Online

Using CMT and OnlinePolicy
Added a few CMT fragments of our own in L1CaloPolicy package
Adopted scripts from DataCollection and added a few of our own
Nightly builds
Doxygen (or Javadoc) for each package, linked by Doxygen tag files and custom HTML header
Website and mailing list for software developers (in addition to the main L1Calo website)

Software Process

Fairly informal

Overall requirements document: internally reviewed (but still a draft)
Uses cases for calibration (ditto)
Various discussion documents, requirements summary and user guides for individual packages
Some use of Together for design and documentation
Following ATLAS coding standards
Starting to implement check targets for packages
First (internal) release: about a week of testing
Feedback at (minuted) monthly meetings rather than reviews and reports

Calibration

Big picture

At the end of an LHC fill, remove L1Calo, TileCal and LAr from ATLAS partition
Run a calibration sequence using combined L1Calo and TileCal partition
Run a calibration sequence using combined L1Calo and LAr partition
Possibly run combined calibration with L1Calo, TileCal and LAr together?
Return L1Calo, TileCal and LAr to ATLAS partition
L1Calo, LAr and TileCal will also perform calibrations at other times

Procedure

Use run control to configure all elements of the combined partition
Iterate over a sequence of calibration steps (synchronously stop triggers and change calibration parameter across the whole system)
We need a fast lightweight way of doing this

Plans (Online SW related)

Short term

Use ROS for collecting and building events
Use Monitoring framework for analysing events
Use Online Histogramming

Longer term

Rewrite HDMC internal database (using OKS?) and integrate with Confdb (would like to be able to create object structures from templates)
Try OBK for recording which tests were done with what configuration
Package simple standalone module tests for use in the Test Manager? (Realistic tests need the run control)

Wishlist

General Online

Combined release of Online, ROS (and DataCollection)
Customisable event dump (long standing request!)
Same DAL API in Java as C++, also eformat in Java?
Create object structures from templates in OKS/Confdb
Faster IGUI (for remote access to systems behind firewalls)

Run States and Run Control

Intermediate states could make life easier
Define what a checkpoint actually is
How phases within a run happen. Can a low level controller declare the end of one run step (eg from local trigger processor crate?)
Kind of test manager to drive sets of tests via run control
